1000/1110 series Companion Flange 1-1-153
1000/1110 series Companion Flange 1-1-153
Low stock: 1 left
Regular price
$186.72 CAD
Regular price
Sale price
$186.72 CAD
Quantity
Couldn't load pickup availability
1000/1110 series Companion Flange 1-1-153

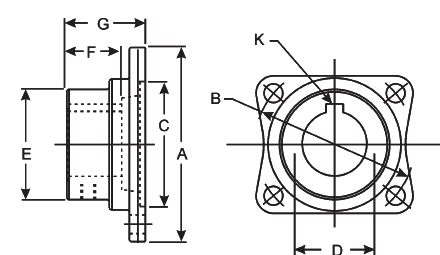

| U-Joint Series | 1100 | |
| Bore Diameter | D | 1.125 |
| Keyway Size | K | 0.250 |
| Flange Diameter | A | 3.500 |
| Pilot Bore Diameter | C | 2.250-F |
| Bolt Circle Diameter | B | 2.750 |
| Bolt Hole Diameter (D = Drilled, T = Tapped) |
||
| Number of Holes | 4.000 | |
| Ground Hub Diameter | E | 1.875 |
| Length Thru Bore | F | 1.500 |
| Flange Face to End of Hub | G | 2.125 |
| Set Screw Thread | 0.375 | |
| Set Screw Location Clock position viewed at Hub End and Keyway at 12 |
6&9 |
