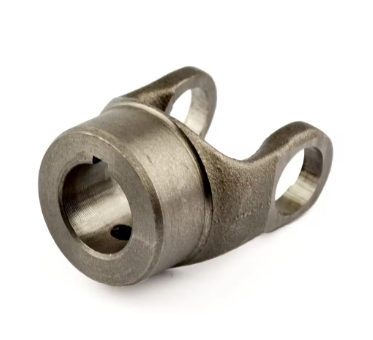

1000 Serie End Yoke - Round Bore 10-4-103
1000 Serie End Yoke - Round Bore 10-4-103
Low stock: 1 left
Regular price
$39.03 CAD
Regular price
Sale price
$39.03 CAD
Quantity
Couldn't load pickup availability
1000 Serie End Yoke - Round Bore 10-4-103
| Bearing Cap Diameter | 15/16 in (2.39 cm) |
|---|---|
| Center Line to End of Hub | 2-1/2 in (6.35 cm) |
| C/L To End Hub (S) | 2.5 |
| Hole Diameter (in.) (P) | 1.125 |
| Hub Diameter | 2 in (5.08 cm) |
| Hub Diameter (R) | 2 |
| Inside Yoke Dimension (in.) (K) | 1.5 |
| Joint Angle | 60 deg |
| Joint Angle #1 | 60 |
| Key Way Location | 9 |
| Keyway Location (W) | 9 |
| Length Thru Hole (Q) | 1.03 |
| Material | Steel |
| Mount Hole Diameter (in.) | 1-1/8 in (2.87 cm) |
| Package Type | Individuel |
| Quantity | 1 |
| Sae Keyway Width (in.) (X) | 0.25 |
| Series | 1000 |
| Set Screw Hole Diameter (in.) | 0.375 |
| Set Screw Size | 3/8 in (0.97 cm) |
| Slot Width | 1/4 in (0.64 cm) |
| Type | Keyed Hole Yoke |
| Weight (lbs) | 0.95 |
| Yoke Bearing Dimension (in.) (D) | 0.938 |
| Yoke Dim Across Ears | 1-1/2 in (3.81 cm) |
| Brands | Spicer |
| Yoke Type | Full Round |
