1000 series End Yoke - Hex Bore 10-4-32
1000 series End Yoke - Hex Bore 10-4-32
Low stock: 1 left
Regular price
$73.99 CAD
Regular price
Sale price
$73.99 CAD
Quantity
Couldn't load pickup availability

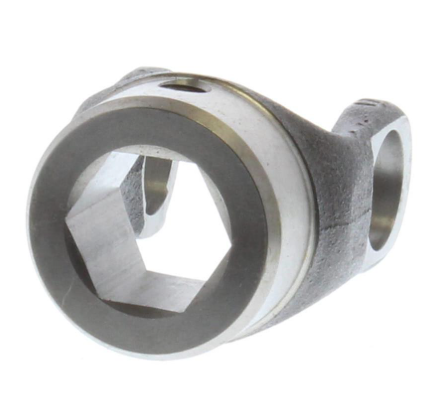

1000 series End Yoke - Hex Bore 10-4-32

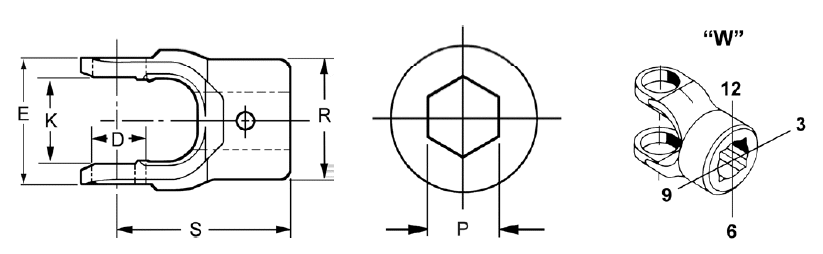

| General Design Type | Hex Bore | |
| U-Joint Series | 1000 | |
| Bore Diameter | P | 1.125 |
| SAE Keyway Width | X | 0.000 |
| Hub Diameter | R | 2.000 |
| Universal Joint Retaining Width | E | 1.500 |
| Universal Joint Bearing Diameter | D | 0.938 |
| Length Thru Bore | Q | 0.000 |
| Centerline of Joint to End of Hub | S | 2.500 |
| Set Screw Thread | 0.375 | |
| Keyway Location | ||
| Set Screw Location Clock position viewed at Hub End and Keyway at 12 |
W | 3 |
