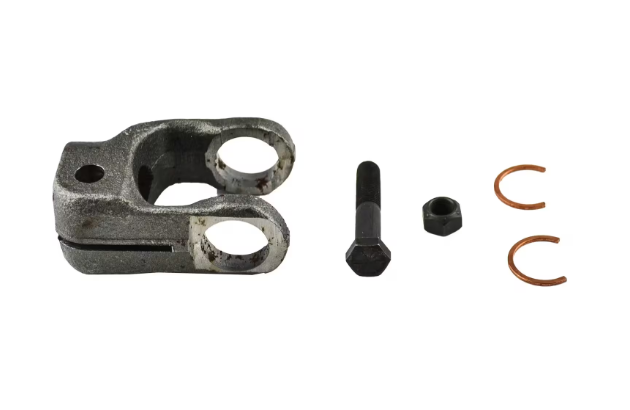

1000 series Steering Shaft Yoke 10-4-561SX
1000 series Steering Shaft Yoke 10-4-561SX
Low stock: 2 left
Regular price
$98.12 CAD
Regular price
Sale price
$98.12 CAD
Quantity
Couldn't load pickup availability
1000 series Steering Shaft Yoke 10-4-561SX

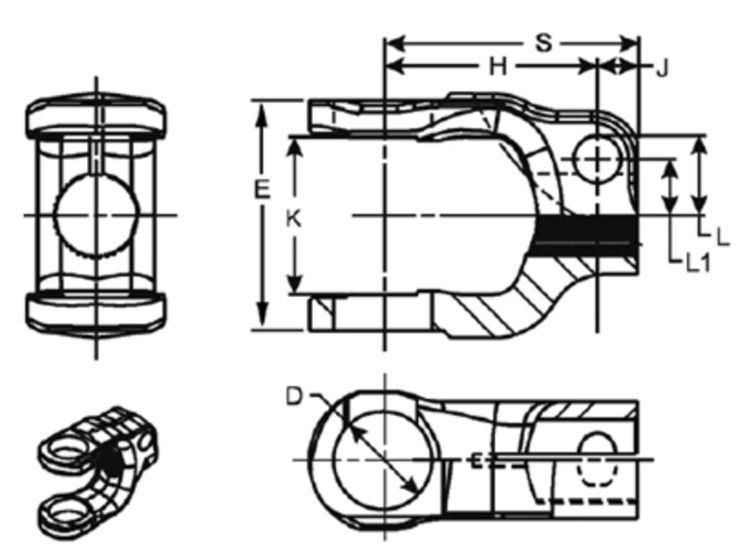

Specifications
| General Design Type | Serrated Bore | |
| U-Joint Series | 1000 | |
| Spline Major Diameter | 0.994 | |
| Spline Minor Diameter (Nominal) | 0.947 | |
| Spline Type | 30 Based On 36 Spline | |
| Bore Diameter | ||
| Keyway Size | 0.000 | |
| Bolt Hole Diameter | 0.405 | |
| 1.780 | ||
| Centerline of Bolt Hole to End of Hub | J | 0.470 |
| Top of Bolt Hole to Centerline of Spline | L | 0.802 |
| Center of Bolt Hole to Center of Spline | L1 | 0.000 |
| Centerline of Joint to End of Hub | S | 2.250 |
| Universal Joint Retaining Width | K | 1.500 |
| Universal Joint Bearing Diameter | D | 0.938 |
