1210 series Ball Stud Tube Yoke 2-28-2407X
1210 series Ball Stud Tube Yoke 2-28-2407X
Low stock: 1 left
Regular price
$180.13 CAD
Regular price
Sale price
$180.13 CAD
Quantity
Couldn't load pickup availability

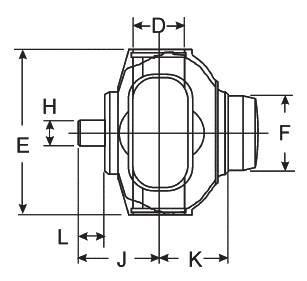

1210 series Ball Stud Tube Yoke 2-28-2407X
| U-Joint Series | 1210 | |
| Universal Joint Retaining Width | E | 2.688 |
| Universal Joint Bearing Diameter | D | 1.062 |
| Compatible U-Joint Kits | SPI-5-443X | |
| Tube Diameter and Wall Size | 2.500 X .065 W | |
| Butt Diameter | F | 2.375 |
| Centerline of Joint to Point of Weld | K | 1.310 |
| Centerline of Joint to End of Ball Stud | J | 1.641 |
| Ball Stud Length | L | 0.594 |
| Ball Stud Diameter | H | 0.500 |
| Max Joint Angle (double value for max CV assy angle) | 10.500 | |
| Greasable | Yes |
