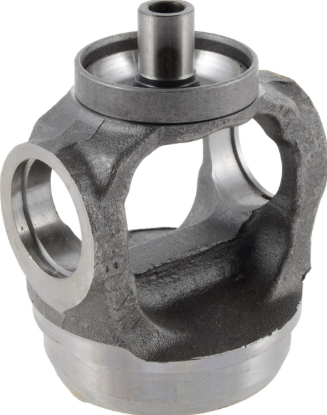

1210 series Ball Stud Tube Yoke 2-28-2987X
1210 series Ball Stud Tube Yoke 2-28-2987X
Low stock: 2 left
Regular price
$498.32 CAD
Regular price
Sale price
$498.32 CAD
Quantity
Couldn't load pickup availability
1210 series Ball Stud Tube Yoke 2-28-2987X

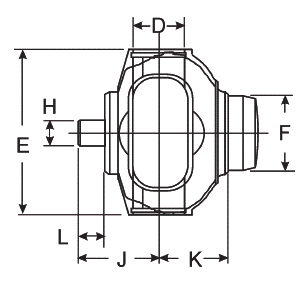

Specifications:
| U-Joint Series | 1310 | |
| Universal Joint Retaining Width | E | 3.469 |
| Universal Joint Bearing Diameter | D | 1.062 |
| Compatible U-Joint Kits | SPI-5-153X,SPI-5-1310X,SPI-5-1310-1X | |
| Tube Diameter and Wall Size | 2.750 X .065 W | |
| Butt Diameter | F | 2.625 |
| Centerline of Joint to Point of Weld | K | 1.281 |
| Centerline of Joint to End of Ball Stud | J | 1.641 |
| Ball Stud Length | L | 0.594 |
| Ball Stud Diameter | H | 0.500 |
| Max Joint Angle (double value for max CV assy angle) | 13.000 | |
| Greasable | Yes |
