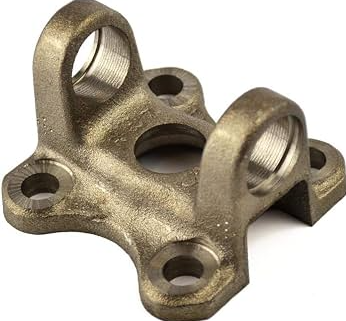

1310 Flange Yoke 2-2-939
1310 Flange Yoke 2-2-939
Low stock: 1 left
Regular price
$65.98 CAD
Regular price
Sale price
$65.98 CAD
Quantity
Couldn't load pickup availability
1310 Flange Yoke 2-2-939
| Design Style | Snap Ring Design | |
| U-Joint Series | 1310 | |
| Universal Joint Retaining Width | 3.469 | |
| Universal Joint Bearing Diameter | D | 1.062 |
| Flange Diameter | A | 4.500 |
| Bolt Circle Diameter | B | 3.500 |
| Horizontal Distance Between Holes (center to center) | 2.475 | |
| Vertical Distance Between Holes (center to center) | 2.475 | |
| Bolt Hole Diameter | .500-D | |
| Bolt Hole Quantity | 4.000 | |
| Pilot Diameter (M-Male, F-Female) | C | 2.000F |
| Centerline of Joint to Flange Face | G | 1.650 |
