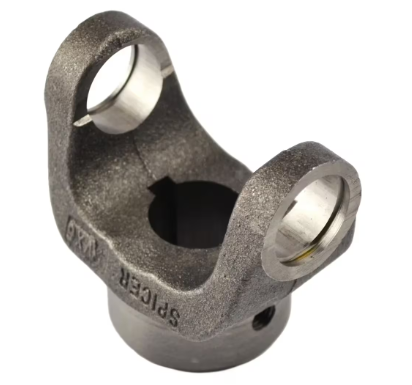

1310 series End Yoke 2-4-533
1310 series End Yoke 2-4-533
Low stock: 2 left
Regular price
$268.64 CAD
Regular price
Sale price
$268.64 CAD
Quantity
Couldn't load pickup availability
1310 series End Yoke 2-4-533
| U-Joint Series | 1310 | |
| Bore Diameter | P | 1.125 |
| SAE Keyway Width | X | 0.312 |
| Hub Diameter | R | 2.125 |
| Universal Joint Retaining Width | E | 3.469 |
| Universal Joint Bearing Diameter | D | 1.062 |
| Length Thru Bore | Q | 0.000 |
| Centerline of Joint to End of Hub | S | 2.562 |
| Set Screw Thread | 0.375 | |
| Keyway Location | 12 | |
| Set Screw Location Clock position viewed at Hub End and Keyway at 12 |
W | 6 |
| Joint Angle | 0.000 | |
| Style | Snap Ring |
