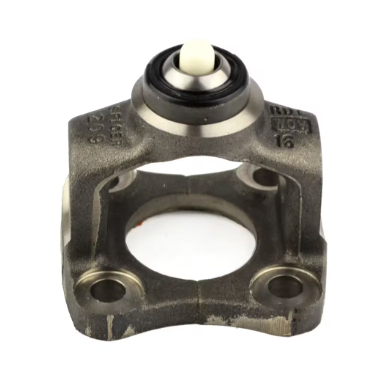

1310 series Flange Socket Yoke 211543X
1310 series Flange Socket Yoke 211543X
Low stock: 1 left
Regular price
$396.11 CAD
Regular price
Sale price
$396.11 CAD
Quantity
Couldn't load pickup availability
1310 series Flange Socket Yoke 211543X

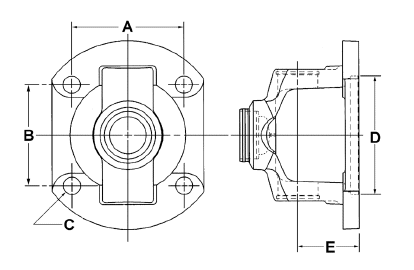

| U-Joint Series | 1310 | |
| Bolt Circle Diameter | 3.500 | |
| Hole Pattern Width | A | 2.484 |
| Hole Pattern Height | B | 2.484 |
| Bolt Hole Diameter | C | 0.484 |
| Pilot Diameter (Female standard, M = Male) | D | 2.000 |
| Centerline of Joint to End of Spline | E | 1.625 |
| Ball Stud Size | 0.500 | |
| Notes | Non Greasable | |
| Cast/Forged | Cast |
