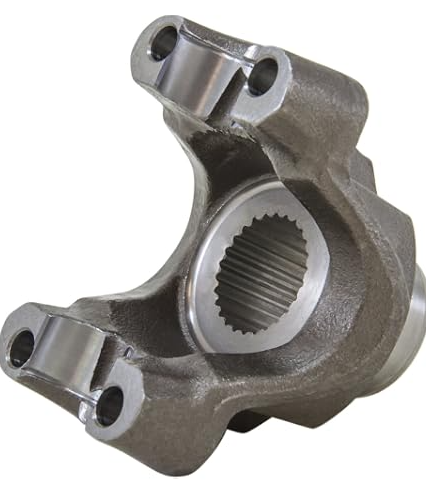

1310 series, U Bolt Style 2-4-1731
1310 series, U Bolt Style 2-4-1731
Low stock: 1 left
Regular price
$299.52 CAD
Regular price
Sale price
$299.52 CAD
Quantity
Couldn't load pickup availability
** 2-4-1731 has been replaced by 2-4-1731-1 **
| U-Joint Series | 1310 | |
| Spline Major Diameter | 1.375 | |
| Spline Count | 10.000 | |
| Spline Type | parallel | |
| Spline Pressure Angle | n/a | |
| Ground Hub Diameter | R | 2.125 |
| Length Thru Bore | Q | 2.000 |
| Centerline of Joint to End of Spline | S | 3.438 |
| Universal Joint Retaining Width | E | 3.219 |
| Universal Joint Bearing Diameter | D | 1.062 |
| Counterbore Depth | 0.000 | |
| Joint Angle | 22.000 | |
| Style | U Bolt |
