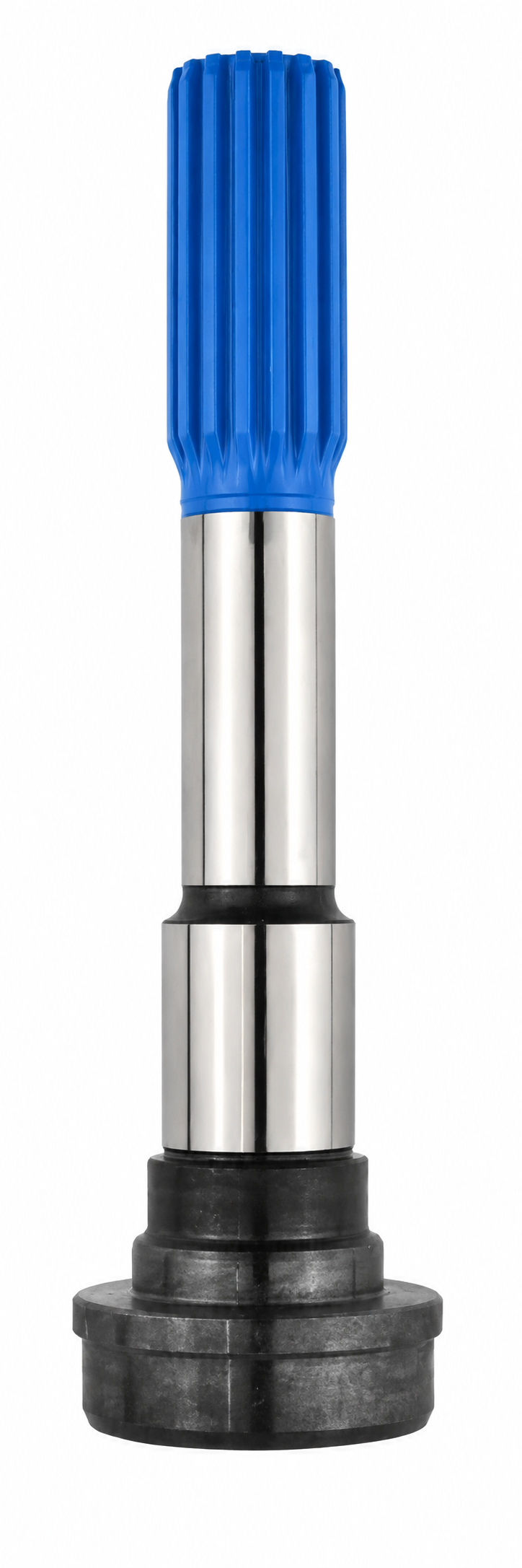

1330 / 1410 MIDSHIP SHAFT Spicer 3-53-1551
1330 / 1410 MIDSHIP SHAFT Spicer 3-53-1551
Out of stock
Regular price
$246.58 CAD
Regular price
Sale price
$246.58 CAD
Quantity
Couldn't load pickup availability
| Bearing Diameter (in.) (C) | 1.575 |
|---|---|
| Bearing Diameter Length | 1.5 |
| Bearing Diameter (Max) | 1.5752 |
| Bearing Diameter (Min) | 1.5747 |
| Bearing Diameter Radius | 0.19 |
| Butt Diameter (in.) (F) | 2.845 |
| For Use With | Outward sliding joint |
| Material | Steel |
| Package Type | Each |
| Quantity | 1 |
| Shoulder Diameter | 1-13/16 in (4.6 cm) |
| Shoulder Diameter (in.) (B) | 1.812 |
| Shoulder Length (in.) (G) | 0.812 |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline End To Brg Shoulder (Y) | 8.24 |
| Spline End To Weld (in.) (K) | 9.375 |
| Spline Length (in.) (L) | 3 |
| Spline O.D. | 1.5 |
