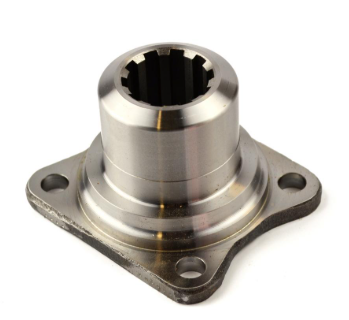

1350/1410 Series Companion Flange 3-1-2011
1350/1410 Series Companion Flange 3-1-2011
Low stock: 1 left
Regular price
$632.31 CAD
Regular price
Sale price
$632.31 CAD
Quantity
Couldn't load pickup availability
1350/1410 Series Companion Flange 3-1-2011

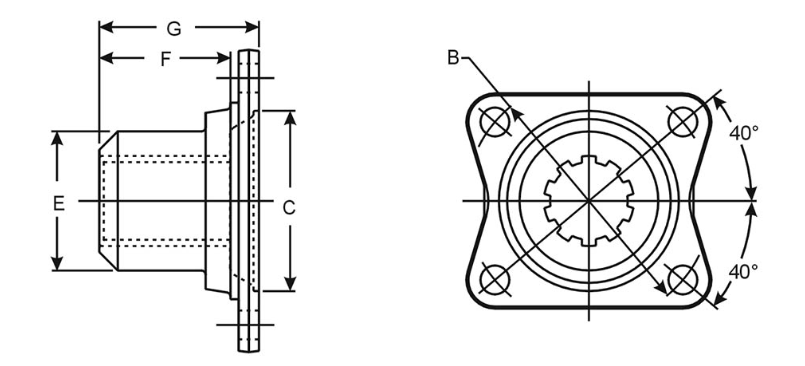

Specifications
| U-Joint Series | 1350/1410 | |
| Spline Major Diameter | D | 1.375 |
| Spline Count | 10.000 | |
| Spline Type | Spline | |
| Pilot Bore Diameter | C | 2.750-F |
| Bolt Circle Diameter | B | 3.750 |
| Bolt Circle Hole Diameter (D = Drilled, T = Tapped) |
.438 D | |
| Number of Holes | 4.000 | |
| Brake Pilot Diameter | 3.000 | |
| Ground Hub Diameter | E | 2.125 |
| Length Thru Bore | F | 2.000 |
| Flange Face to End of Hub | G | 2.438 |
