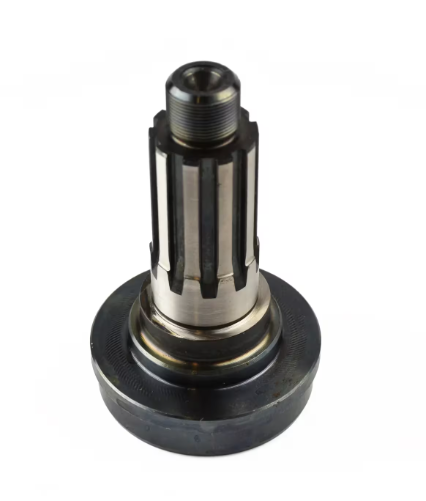

1410 / 1480 Series Midship Splined Tube Shaft 3-53-1821
1410 / 1480 Series Midship Splined Tube Shaft 3-53-1821
Low stock: 1 left
Regular price
$308.45 CAD
Regular price
Sale price
$308.45 CAD
Quantity
Couldn't load pickup availability
1410 / 1480 Series Midship Splined Tube Shaft 3-53-1821
| General Design Type | Companion Flange or End Yoke Design | |
| Spline Major Diameter | D | 1.500 |
| Spline Count | 10.000 | |
| Spline Type | ||
| Bearing Diameter | C | 1.574 |
| Tube Diameter and Wall Size | 3.500 X .083 | |
| End of Spline to Bearing Shoulder | Y | 2.969 |
| End of Spline to Point of Weld | K | 4.031 |
| Length of Spline | L | 2.000 |
| Thread Size | 1.000-20 | |
| Shoulder Diameter | B | 1.938 |
| Length of Shoulder | G | 0.812 |
