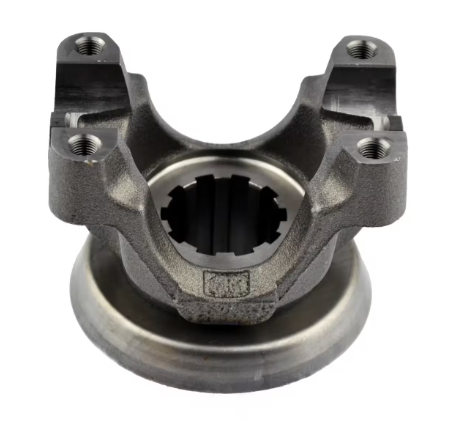

1480 series End Yoke - Splined Bore 3-4-5791X
1480 series End Yoke - Splined Bore 3-4-5791X
Low stock: 1 left
Regular price
$167.85 CAD
Regular price
Sale price
$167.85 CAD
Quantity
Couldn't load pickup availability
1480 series End Yoke - Splined Bore 3-4-5791X
| Bearing Cap Diameter | 1-3/8 in (3.51 cm) |
|---|---|
| C-Bore Depth | 0.25 |
| Center Line to End of Hub | 4-9/32 in (10.87 cm) |
| C/L To End Hub (S) | 4.281 |
| Hub Diameter | 2-5/8 in (6.68 cm) |
| Hub Diameter (R) | 2.625 |
| Length Thru Hole (Q) | 2.25 |
| Major Diameter | 1.75 |
| Material | Steel |
| Outside Yoke Dimension (in.) (E) | 4.188 |
| Package Type | Individuel |
| Quantity | 1 |
| Series | 1480 |
| Spline Diameter | 1-3/4 in (4.45 cm) |
| Type | Splined Hole Yoke |
| Weight (lbs) | 4.55 |
| Yoke Bearing Dimension (in.) (D) | 1.375 |
