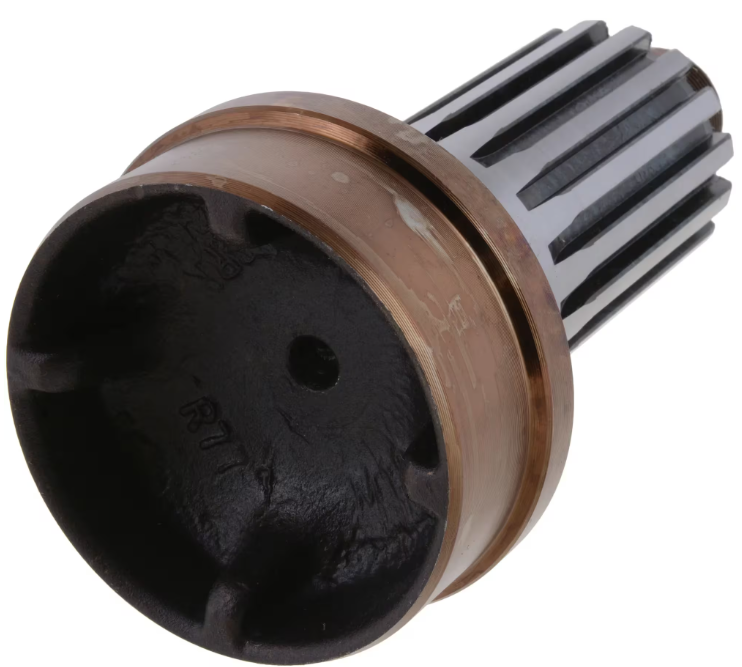

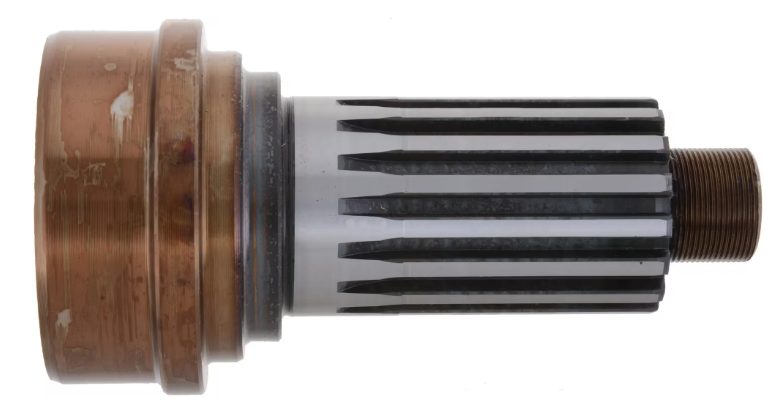

1710 / 1760 MIDSHIP SHAFT 6-53-311
1710 / 1760 MIDSHIP SHAFT 6-53-311
Low stock: 1 left
Regular price
$290.87 CAD
Regular price
Sale price
$290.87 CAD
Quantity
Couldn't load pickup availability
| Bearing Diameter (in.) (C) | 2.362 |
|---|---|
| Bearing Diameter (Max) | 2.3622 |
| Bearing Diameter (Min) | 2.3617 |
| Butt Diameter (in.) (F) | 3.743 |
| For Use With | Secondary shaft fork or counter-flange |
| Material | Steel |
| Package Type | Each |
| Quantity | 1 |
| Shoulder Diameter | 2-7/8 in (7.32 cm) |
| Shoulder Diameter (in.) (B) | 2.875 |
| Shoulder Length (in.) (G) | 0.812 |
| Spline Diameter | 2-11/32 in (5.94 cm) |
| Spline End To Brg Shoulder (Y) | 4 |
| Spline End To Weld (in.) (K) | 5.312 |
| Spline Length (in.) (L) | 2.625 |
| Spline O.D. | 2.35 |
| Weight (lbs) | 9.25 |
| Brands | Spicer |
