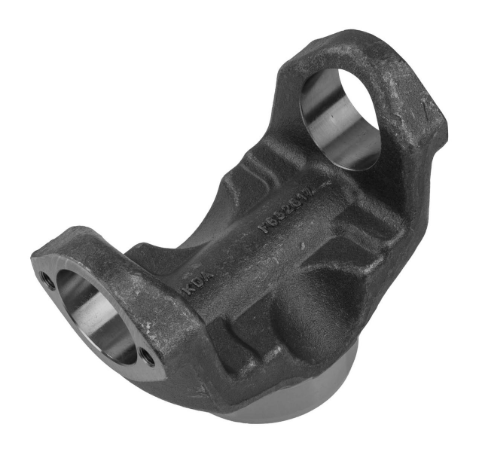

1710 Tube Yoke 6-28-407

1710 Tube Yoke 6-28-407

Low stock: 2 left

$256.36 CAD
$256.36 CAD
Sale Sold out

1710 Tube Yoke 6-28-407

Specifications

Bearing Cap Diameter 1-15/16 in (4.93 cm)
Bearing Cap Diameter (in.) (D) 1.938
Centerline to Point of Weld 3-1/32 in (7.7 cm)
C/L To Weld (in.) H 3.031
Design BP
Fits Tube Wall (S=Seam W=Weld) .134-WELDED
Joint Angle 22 deg
Joint Angle #1 22
Material Steel
Outside Yoke Dimension (in.) (E) 6.094
Package Type Individuel
Quantity 1
Series 1710
Weight (lbs) 10.95
