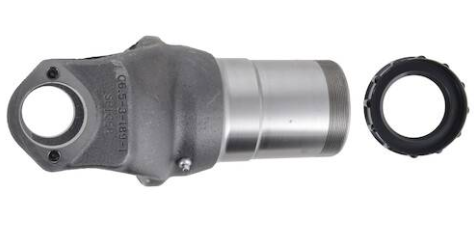

1810 Series Drive Shaft Slip Yoke 6.5-3-1351KX
1810 Series Drive Shaft Slip Yoke 6.5-3-1351KX
Low stock: 1 left
Regular price
$416.45 CAD
Regular price
Sale price
$416.45 CAD
Quantity
Couldn't load pickup availability
1810 Series Drive Shaft Slip Yoke 6.5-3-1351KX

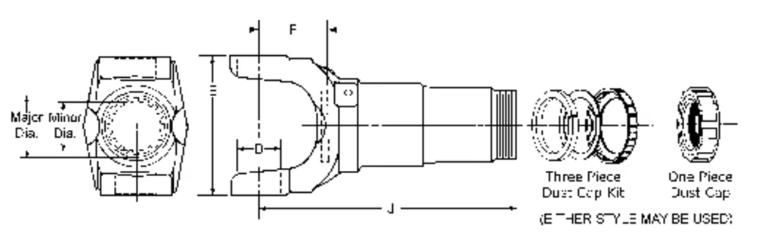

| Base To Hole Center (A) | 2-3/8 in (6.05 cm) |
|---|---|
| Bearing Cap Diameter | 1-15/16 in |
| Bearing Cap Diameter (in.) (D) | 1.938 |
| Center Line to End of Hub | 10-1/4 in (26.04 cm) |
| C/L To End Of Spline (in.) (J) | 10.25 |
| C/L To Face Of Plug (in.) (F) | 2.375 |
| Joint Angle | 30 deg |
| Material | Steel |
| Outside Yoke Dimension (in.) (E) | 7.547 |
| Package Type | Individuel |
| Product Category | Drive Shaft Slip Yoke |
| Quantity | 1 |
| Series | 1810 |
| Spline Diameter | 3 in (7.62 cm) |
| Spline O.D. | 3 |
| Style | BP |
| VMRS Code | 24002038 |
| Weight | 23.5 lb |
| Weight (lbs) | 22.4 |
| Brands | Spicer |
| Number of Splines | 16 |
| Center Line to Face of Plug | 2.375 in |
| C/L to End of Spline | 10.250 in |
| Outside Yoke Dimension | 7.547 in |
