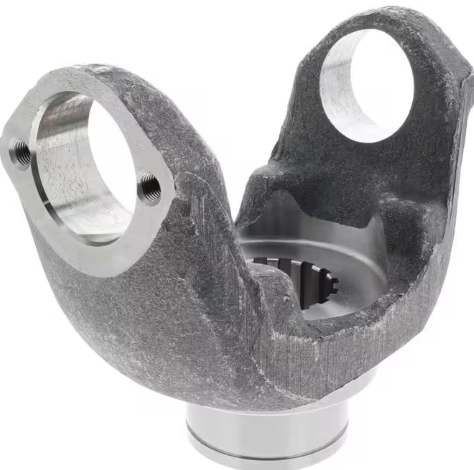

1810 series End Yoke 6.5-4-3011
1810 series End Yoke 6.5-4-3011
Low stock: 2 left
Regular price
$944.08 CAD
Regular price
Sale price
$944.08 CAD
Quantity
Couldn't load pickup availability
1810 series End Yoke 6.5-4-3011

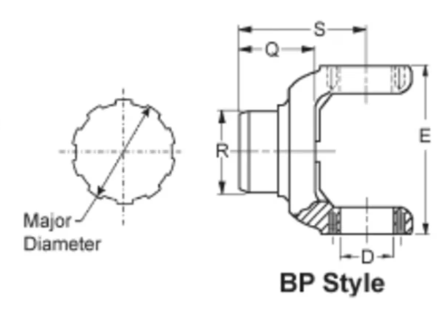

| U-Joint Series | 1810 | |
| Spline Major Diameter | 2.350 | |
| Spline Count | 16.000 | |
| Spline Type | ||
| Spline Pressure Angle | ||
| Ground Hub Diameter | R | 3.750 |
| Length Thru Bore | Q | 2.750 |
| Centerline of Joint to End of Spline | S | 5.562 |
| Universal Joint Retaining Width | E | 7.547 |
| Universal Joint Bearing Diameter | D | 1.938 |
| Counterbore Depth | 0.000 | |
| Joint Angle | 0.000 | |
| Style | Bolt Plate |
