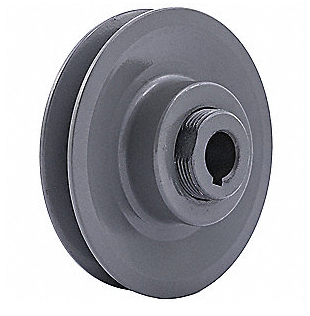

1VP50 X 1-1/8 SHEAVE Variable Pitch Pulley - 1VP Series,,A/B Belt Section Size, 1.1250 in Bore, 4.7500 in OD

Variable Pitch Pulley - 1VP Series, 1 Groove, A/B Belt Section Size, 1.1250 in Bore, 4.7500 in OD, Finished w/ Keyway & SS, Cast Iron Material

• Belt Section Size
  A, B
• Number Of Grooves
  1
• Bore Type
  Finished w/ Keyway & SS
• Bore Diameter
  1.1250 in
• Minimum Pitch Diameter
  3.3 (3L) in, 3.4 (4L) in, 3.7 (5L) in
• Maximum Pitch Diameter
  4.1 (3l) in, 4.4 (4L) in, 4.7 (5L) in
• Outside Diameter
  4.7500 in
• Series
  1VP
• Length Through Bore
  1.8750 in
• Material
  Cast Iron
• Overall Width
  1.8750 in
• Manufacturer Upc Number
  775829145552
• Weight
  3.6 lbs, 4.2
• Datum Diameter
  3.5500 in
