3R Series Ball Stud Tube Yoke 3-28-869
3R Series Ball Stud Tube Yoke 3-28-869
Low stock: 1 left
Regular price
$223.45 CAD
Regular price
Sale price
$223.45 CAD
Quantity
Couldn't load pickup availability
3R Series Ball Stud Tube Yoke 3-28-869

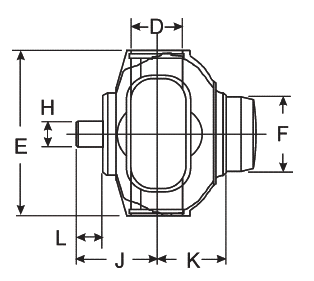

| U-Joint Series | 3R | |
| Universal Joint Retaining Width | E | 2.556 |
| Universal Joint Bearing Diameter | D | 1.125 |
| Compatible U-Joint Kits | SPI-5-3147X,SPI-5-795X | |
| Tube Diameter and Wall Size | 2.000 X .120 | |
| Butt Diameter | F | 1.766 |
| Centerline of Joint to Point of Weld | K | 1.625 |
| Centerline of Joint to End of Ball Stud | J | 2.000 |
| Ball Stud Length | L | 0.000 |
| Ball Stud Diameter | H | 0.906 |
| Max Joint Angle (double value for max CV assy angle) | 8.500 | |
| Greasable | Yes |
