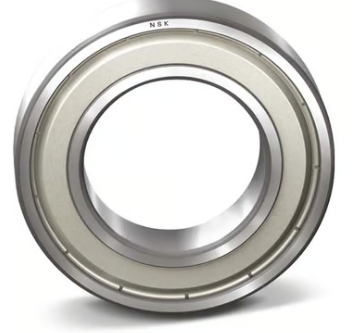

6800ZZ

6800ZZ

Low stock: 6 left

$31.55 CAD
$31.55 CAD
Sale Sold out
  • Bore Type
    Straight
  • Bore Diameter
    10 mm
  • Outside Diameter
    19 mm
  • Contact Angle
    Not Applicable
  • Overall Width
    5 mm
  • Closure Type
    Double Shielded
  • Row Type Fill Slot
    Single Row Non-Fill Slot
  • Snap Ring Included
    Without Snap Ring
  • Internal Clearance
    C3
  • Operating Temperature Range
    -10 to +110 °C
  • Precision Rating
    ABEC 1 (ISO Class Normal)
  • Finish Coating
    Uncoated
  • Cage Material
    Steel
  • Outer Ring Width
    5 mm
  • Fillet Radius
    0.3 mm
  • Max Rpm
    40000 rpm
  • Series
    68
  • Radial Dynamic Load Capacity
    1720 N
  • Radial Static Load Capacity
    840 N
  • Manufacturer Catalog Number
    6800ZZ
