AMCAN CR-2 1/2 xb
AMCAN CR-2 1/2 xb
Low stock: 4 left
Regular price
$65.32 CAD
Regular price
Sale price
$65.32 CAD
Quantity
Couldn't load pickup availability
The

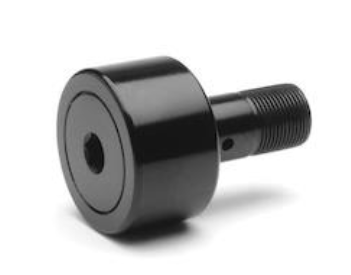

(commonly abbreviated as CR 2.5 XB) is a stud-type cam follower needle roller bearing and often used in heavy-duty industrial applications, including some commercial refrigeration roller tracks.
Key Technical Specifications
| Feature | Specification |
|---|---|
| Roller Diameter (D) | 2.500 in (63.5 mm) |
| Roller Width (B) | 1.500 in (38.1 mm) |
| Stud Diameter (A) | 1.000 in (25.4 mm) |
| Stud Length (M) | 2.250 in (57.15 mm) |
| Overall Length | ~3.75 in (95.25 mm) |
| Thread Size (T) | 1-14 UNF Class 2A |
| Basic Dynamic Rating | 15,280 lbs |
| Max Static Capacity | 16,650 lbs |
| Drive Type | Hex Socket (Hex Head) |
| Closure Type | Sealed (typically double sealed) |
| Material | High-Alloy Bearing Steel (e.g., 52100) |
