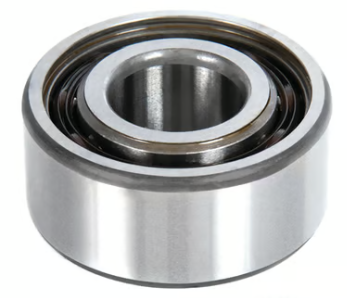

Timken 5203K

Timken 5203K

Low stock: 1 left

Regular price $138.89 CAD
Regular price Sale price $138.89 CAD
Sale Sold out
Quantity

Specifications

  • Bore Type
    Straight
  • Bore Diameter
    17 mm
  • Outside Diameter
    40 mm
  • Overall Width
    0.6875 in
  • Row Type Fill Slot
    Double-Row Non-Fill Slot
  • Closure Type
    Open
  • Snap Ring Included
    Without Snap Ring
  • Bearing Type
    Angular Contact Bearings
  • Contact Angle
    20 °
  • Internal Clearance
    C0
  • Radial Dynamic Load Capacity
    3800 lbf
  • Radial Static Load Capacity
    2080 lbf
  • Cage Material
    Nylon
  • Max Rpm
    10530 rpm
  • Finish Coating
    Uncoated
  • Precision Rating
    Not Rated
  • Fillet Radius
    0.6 mm
  • Series
    5200
  • Weight
    0.23 lbs
  • UPC_NO
    087796043237
