FAG 22212-E1-C3

Specifications

• Bore Type
  Straight
• Outer Ring Type
  Not Split
• Bore Diameter
  60 mm
• Outside Diameter
  110 mm
• Overall Width
  28 mm
• Cage Type
  Outer Ring Guided
• Closure Type
  Open
• Internal Clearance
  C3
• Lubrication Hole Type
  Lubrication Groove & Hole
• Max Operating Temperature
  392 °F
• Measurement Standard
  Metric
• Max Rpm
  7500 rpm
• Operating Temperature Range
  -30 of +200 °C
• Cage Material
  Steel Cage
• Bearing Material
  Steel
• Precision Rating
  Not Rated
• Application
  Vibratory Applications
• Finish Coating
  Uncoated
• Fillet Radius
  1.50 mm
• Series
  222
• UPC_NO
  4026677805027
• Weight
  2.33 lbs
• Maximum Speed
  8.100 rpm
• Relubricatable
  Standard
• Description

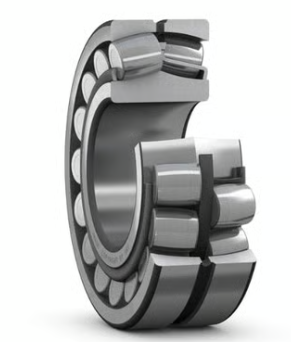

  Spherical roller bearings 222..-E1, main dimensions to DIN 635-2
• Product Type
  Spherical Roller Bearings
