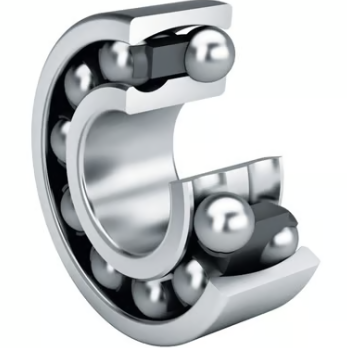

FAG 3306-BD-2HRS-TVH-C3

Specifications

• Bore Type
  Straight
• Bore Diameter
  30 mm
• Outside Diameter
  72 mm
• Overall Width
  1-3/16 in
• Row Type Fill Slot
  Double-Row Non-Fill Slot
• Closure Type
  Open
• Snap Ring Included
  Without Snap Ring
• Bearing Type
  Angular Contact Bearings
• Contact Angle
  25 °
• Internal Clearance
  C3
• Radial Dynamic Load Capacity
  7400 lbf
• Radial Static Load Capacity
  5500 lbf
• Operating Temperature Range
  Maximum of +110 °C
• Cage Material
  Steel
• Max Rpm
  6200 rpm
• Finish Coating
  Uncoated
• Precision Rating
  Not Rated
• Fillet Radius
  1 mm
• Series
  3300
• Standards Met
  DIN 628-3
• UPC_NO
  4012802478044
