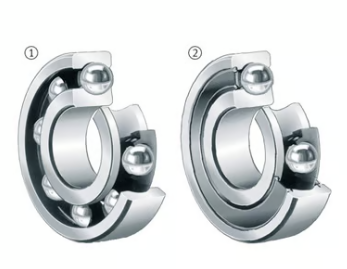

FAG 60082Z

Specifications

• Bore Type
  Straight
• Bore Diameter
  40 mm
• Outside Diameter
  68 mm
• Overall Width
  15 mm
• Closure Type
  Double Shielded
• Row Type Fill Slot
  Single Row Non-Fill Slot
• Snap Ring Included
  Without Snap Ring
• Internal Clearance
  C0
• Operating Temperature Range
  -30 to +120 °C
• Precision Rating
  Not Rated
• Finish Coating
  Uncoated
• Cage Material
  Steel
• Fillet Radius
  1 mm
• Max Rpm
  12400 rpm
• Standards Met
  DIN 625-1
• Series
  60
• Radial Dynamic Load Capacity
  17800 N
• Radial Static Load Capacity
  11500 N
• Manufacturer Catalog Number
  6008-2Z-L038
• Manufacturer Upc Number
  4012802651782
