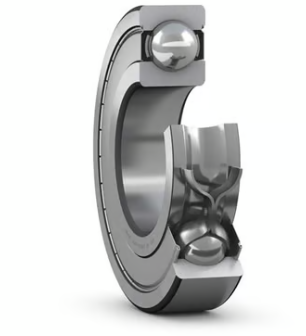

FAG 6201-2RSR-L038-C3

FAG 6201-2RSR-L038-C3

Low stock: 2 left

$32.19 CAD
$32.19 CAD
Sale Sold out
  • Bore Type
    Straight
  • Bore Diameter
    12 mm
  • Outside Diameter
    32 mm
  • Overall Width
    10 mm
  • Closure Type
    Double Sealed
  • Row Type Fill Slot
    Single Row Non-Fill Slot
  • Snap Ring Included
    Without Snap Ring
  • Internal Clearance
    C3
  • Operating Temperature Range
    -30 to +110 °C
  • Precision Rating
    ABEC 1 (ISO Class Normal)
  • Finish Coating
    Uncoated
  • Cage Material
    Steel
  • Fillet Radius
    0.6 mm
  • Max Rpm
    16000 rpm
  • Standards Met
    DIN 625-1
  • Series
    62
  • Radial Dynamic Load Capacity
    7300 N
  • Radial Static Load Capacity
    3100 N
  • Manufacturer Catalog Number
    6201-2RSR-L038-C3
