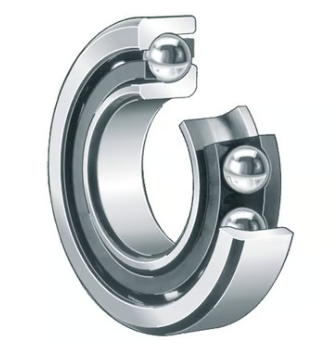

FAG 7208 BTVP

Specifications
Dimensions
Bore Diameter
40 mm
Contact Angle
40 °
Fillet Radius
1 mm
Outer Ring Width
18 mm
Outside Diameter
80 mm
Overall Width
18 mm
Precision Rating
ABEC 1 (ISO Class Normal)
Details
Bearing Type
Angular Contact Bearings
Bore Type
Straight
Cage Material
Polyamide
Closure Type
Open
Description
7208-B-XL-TVP
Finish Coating
Uncoated
Internal Clearance
C0
Max Rpm
7200 rpm
Operating Temperature Range
Maximum of +120 °C
Product Type
Angular Contact Bearings
Radial Dynamic Load Capacity
8700 lbf
Radial Static Load Capacity
6000 lbf
Row Type Fill Slot
Single-Row Non-Fill Slot
Series
7200
Snap Ring Included
Without Snap Ring
Standards Met
DIN 628-1
UPC_NO
4012801165990
