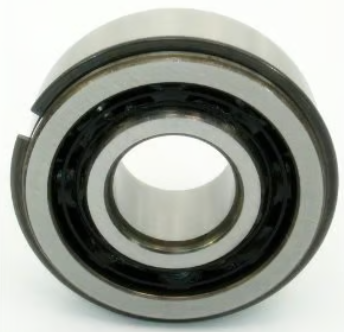

MRC 5206CFF

Specifications

• Bore Type
  Straight
• Bore Diameter
  30 mm
• Outside Diameter
  62 mm
• Overall Width
  0.9375 in
• Row Type Fill Slot
  Double-Row Non-Fill Slot
• Closure Type
  Open
• Snap Ring Included
  Without Snap Ring
• Bearing Type
  Angular Contact Bearings
• Duplex Type
  Single
• Contact Angle
  30 °
• Bearing Material
  Chrome Steel
• Internal Clearance
  C3
• Radial Dynamic Load Capacity
  6430 lbf
• Seal Material
  Tinplate
• Radial Static Load Capacity
  4590 lbf
• Cage Material
  Steel
• Inner Ring Width
  23.813 mm
• Element Material
  Bearing steel
• Max Rpm
  9500 rpm
• Finish Coating
  Uncoated
• Precision Rating
  Not Rated
• Fillet Radius
  1 mm
• Series
  5200-C
• Weight
  0.69 lbs
• Manufacturer Upc Number
  097741011327
