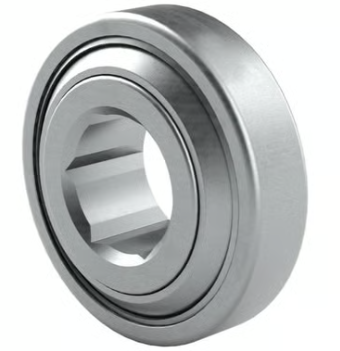

NATIONAL 206KRR6

Specifications

• Bore Type
  Hex
• Bore Diameter
  1.0030 in
• Outside Diameter
  62 mm
• Contact Angle
  Not Applicable
• Overall Width
  24 mm
• Closure Type
  Double Sealed
• Snap Ring Included
  Without Snap Ring
• Bearing Material
  SAE 52100 Steel
• Operating Temperature Range
  -20 to 300° F
• Row Type Fill Slot
  Single Row Non-Fill Slot
• Max Rpm
  3500 rpm
• Description
  206HRR6 AGRICULTURE BEARING
• Finish Coating
  Uncoated
• Application
  Agriculture, High Contaminated Areas
• Precision Rating
  ABEC 1
• Inner Ring Width
  24 mm
