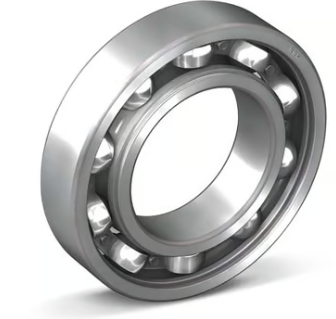

NSK 6009C3

NSK 6009C3

Low stock: 1 left

$62.88 CAD
$62.88 CAD
Sale Sold out
  • Bore Type
    Straight
  • Bore Diameter
    45 mm
  • Outside Diameter
    75 mm
  • Overall Height
    16 mm
  • Overall Width
    16 mm
  • Overall Length
    75 mm
  • Closure Type
    Double Sealed
  • Row Type Fill Slot
    Single Row Non-Fill Slot
  • Snap Ring Included
    Without Snap Ring
  • Internal Clearance
    C3
  • Operating Temperature Range
    Maximum of +250 °F
  • Precision Rating
    ABEC 1 (ISO Class Normal)
  • Finish Coating
    Uncoated
  • Cage Material
    Steel
  • Outer Ring Width
    16 mm
  • Fillet Radius
    1 mm
  • Max Rpm
    11000 rpm
  • Series
    60
  • Radial Dynamic Load Capacity
    20900 N
  • Radial Static Load Capacity
    15200 N
  • Manufacturer Catalog Number
    6009C3
