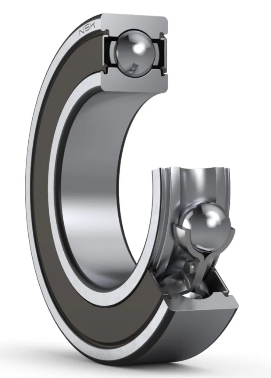

NSK 6911 VVCM
NSK 6911 VVCM
Out of stock
Regular price
$88.40 CAD
Regular price
Sale price
$88.40 CAD
Quantity
Couldn't load pickup availability
| 6911VVCM |

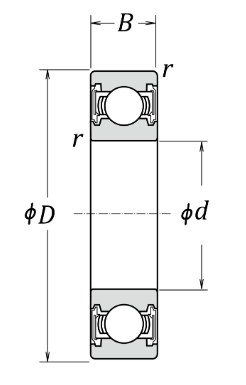

Boundary Dimensions
| d | 55 | mm | Bore diameter |
| D | 80 | mm | Outside diameter |
| B | 13 | mm | Width |
| r (min.) | 1 | mm | Chamfer dimension |
Basic Load Ratings
| Cr | 17600 | N | Basic dynamic load rating |
| C0r | 13300 | N | Basic static load rating |
Speeds
| Grease | 8000 | min-1 | Grease lubrication |

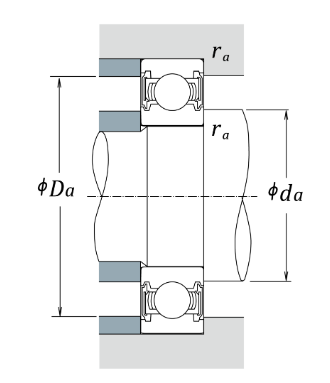

Abutment and Fillet Dimensions
| da (min.) | 60 | mm | Diameter of shaft abutment |
| da (max.) | 61.5 | mm | Diameter of shaft abutment |
| Da (max.) | 75 | mm | Diameter of housing abutment |
| ra (max.) | 1 | mm | Radius of shaft or housing fillet |
| Dx (min.) | 0 | mm | Diameter of snap ring recess in the housing |
| Cy (max.) | 0 | mm | Distance from outer ring side face to snap ring back face |
Calculation factors
| fo | 16.2 | Factor |
Additional information
| z | 16 | Number of Balls | |
| Dw | 7.144 | mm | Ball Diameter |
Mass
| (approx.) | 0.189 | kg |
