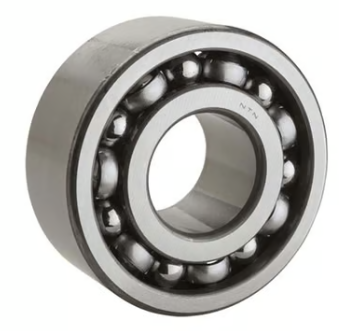

NTN 5212

Specifications

• Bore Type
  Straight
• Bore Diameter
  60 mm
• Outside Diameter
  110 mm
• Overall Width
  1.4370 in
• Row Type Fill Slot
  Double-Row Non-Fill Slot
• Closure Type
  Open
• Cage Type
  Pressed
• Snap Ring Included
  Without Snap Ring
• Bearing Type
  Angular Contact Bearings
• Contact Angle
  25 °
• Bearing Material
  High Carbon Chrome Steel
• Internal Clearance
  C0
• Radial Dynamic Load Capacity
  69000 N
• Radial Static Load Capacity
  62000 N
• Cage Material
  Steel
• Harmonization Code
  8482.10.5028
• Country of Origin
  JP
• Inner Ring Width
  1.4370 in, 36.500 mm
• Configuration
  Two
• Max Rpm
  5000 rpm
• Finish Coating
  Uncoated
• Precision Rating
  Class 0
• Fillet Radius
  1.5 mm
• Series
  52
• Weight
  2.76 lbs
• Manufacturer Product Page
  Click here
• Manufacturer Upc Number
  4547359538144
