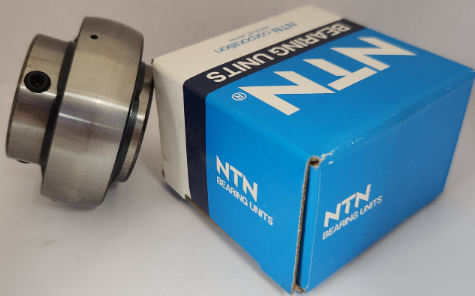

NTN AS206

Specifications

• Bore Type
  Cylindrical
• Bore Diameter
  1-3/16 in
• Outside Diameter
  2.4409 in
• Overall Width
  1.1417 in
• Outer Ring Width
  0.6299 in
• Duty Type
  Standard Duty
• Inner Ring Width
  1.1417 in
• Locking Device
  Set Screw
• Closure Type
  Sealed
• Operating Temperature Range
  -40 to 250 ºF
• Fillet Radius
  0.0394 in
• Radial Dynamic Load Capacity
  4400 lbf
• Radial Static Load Capacity
  2540 lbf
• Bearing Material
  Through Hardened Steel
• Finish Coating
  Uncoated
• Max Rpm
  4900 rpm
• Seal Type
  Contact
• Series
  AS2
• Precision Rating
  ISO Class 0
• Manufacturer Product Page
  Click here
• Manufacturer Upc Number
  4547359021677
