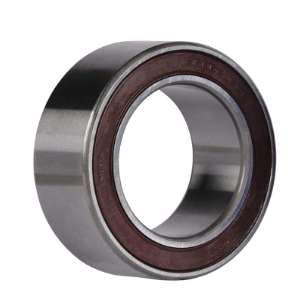

NTN CS204LLU

NTN CS204LLU

Low stock: 3 left

$29.14 CAD
$29.14 CAD
Sale Sold out
  • Bore Type
    Straight
  • Bore Diameter
    20 mm
  • Outside Diameter
    47 mm
  • Overall Width
    14 mm
  • Closure Type
    Double Sealed
  • Row Type Fill Slot
    Single Row Non-Fill Slot
  • Snap Ring Included
    Without Snap Ring
  • Internal Clearance
    CN
  • Operating Temperature Range
    -40 to 250 ºF
  • Cage Type
    Pressed
  • Precision Rating
    Class 0
  • Finish Coating
    Uncoated
  • Bearing Material
    Through Hardened Steel
  • Cage Material
    Steel
  • Inner Ring Width
    0.5512 in, 14.000 mm
  • Fillet Radius
    0.0394 in, 1.000 mm
  • Series
    CS2
  • Radial Dynamic Load Capacity
    2230 lbf
  • Radial Static Load Capacity
    1410 lbf
  • Manufacturer Catalog Number
    CS204LLU
