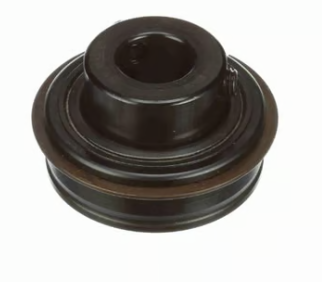

Sealmaster ER-206

Specifications

• Bore Type
  Straight
• Bore Diameter
  30 mm
• Outside Diameter
  62 mm
• Internal Clearance
  Standard
• Bearing Type
  Ball Bearing
• Overall Width
  1.5000 in
• Max Operating Temperature
  220 °F
• Outer Ring Width
  22.2 mm
• Duty Type
  Medium Duty
• Inner Ring Width
  38.1 mm
• Locking Device
  Set Screw
• Operating Temperature Range
  -20 to 220 °F
• Fillet Radius
  0.0400 in
• Radial Dynamic Load Capacity
  4381 lbf
• Radial Static Load Capacity
  2567 lbs
• Bearing Material
  52100 Bearing Steel
• Cage Type
  Land Riding Retainer
• Cage Material
  PPS
• Finish Coating
  Black Oxide
• Max Rpm
  5450 rpm
• Retainer Type
  Land Riding Retainer
• Seal Type
  Felt Labyrinth Seal
• Expansion Type
  Non-Expansion Bearing (Fixed)
• Series
  ER
• Precision Rating
  ABEC 1
• Bore Length
  1.5000 in
• Misalignment Angle
  None
• Housing Type
  Insert (ER Style)
• Insert Material
  52100 Bearing Steel, Black Oxided
• Lubricant
  Lithium Complex NLGI 2 Grease
• Lubrication Type
  Lithium Complex NLGI 2 Grease
• Lubrication
  Lithium Complex NLGI 2 Grease
• CAD Drawing
  Click here
• Manufacturer Catalog Number
  ER-206
• Manufacturer Product Page
  Click here
• Manufacturer Catalog
  Click here
• Manufacturer Upc Number
  662461008584
• UPC_NO
  662461008584
• Weight
  0.87 lbs
• Relubricatable
  Yes
• Type Of Bearing
  Ball
• Product Type
  Ball Insert Bearings
