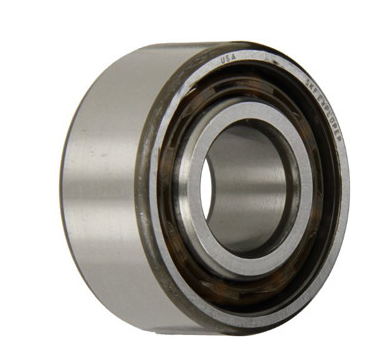

SKF 1205 EKTN9

SKF 1205 EKTN9

Low stock: 1 left

$84.58 CAD
$84.58 CAD
Sale Sold out
  • Bore Type
    Straight
  • Bore Diameter
    25 mm
  • Outside Diameter
    52 mm
  • Overall Width
    15 mm
  • Closure Type
    Open
  • Snap Ring Included
    Without Snap Ring
  • Contact Angle
    Not Applicable
  • Internal Clearance
    CN
  • Seal Type
    Open
  • Bearing Type
    Self-Aligning Ball Bearings
  • Precision Rating
    Not Rated
  • Max Rpm
    18000 rpm
  • Bearing Material
    Bearing steel
  • Cage Material
    Polyamide
  • Finish Coating
    Uncoated
  • Inner Ring Width
    0.5906 in / 15 mm
  • Fillet Radius
    1 mm
  • Series
    1200
  • UPC_NO
    7316576620850
  • Weight
    0.32 lbs
  • ABEC
    ABEC 1
  • Accuracy/Standards
    Normal / P0
  • Coating
    None
  • Description
    1205 ETN9 BRG
  • Element Material
    Bearing steel
  • Locating
    None
  • Lubrication
    None
  • Outer Diameter Type
    Cylindrical
  • Relubricatable
    None
  • Rolling Element
    Ball
  • Row Type Fill Slot
    2
  • Manufacturer Catalog Number
    1205 ETN9
  • Radial Dynamic Load Capacity
    3210 lbf
  • Radial Static Load Capacity
    900 lbf
  • Product Type
    Self-Aligning Ball Bearings
  • Long Description
    1205 ETN9 Bearing has 25 mm straight bore, open closure, 52 mm OD, 15 mm width; for moderate speed shafts.
