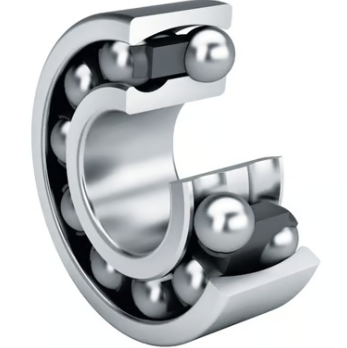

SKF 1207 EKTN9 C3

Specifications

• Bore Type
  Tapered 1:12
• Bore Diameter
  35 mm
• Outside Diameter
  72 mm
• Overall Width
  17 mm
• Closure Type
  Open
• Snap Ring Included
  Without Snap Ring
• Contact Angle
  Not Applicable
• Internal Clearance
  C3
• Seal Type
  Open
• Bearing Type
  Self-Aligning Ball Bearings
• Precision Rating
  Not Rated
• Max Rpm
  13000 rpm
• Bearing Material
  Bearing steel
• Cage Material
  Polyamide
• Finish Coating
  Uncoated
• Inner Ring Width
  0.6693 in / 17 mm
• Fillet Radius
  1.1 mm
• Series
  1200
• UPC_NO
  7316576621857
• Weight
  0.71 lbs
• ABEC
  ABEC 1
• Accuracy/Standards
  Normal / P0
• Coating
  None
• Description
  1207 EKTN9 C3 BRG
• Element Material
  Bearing steel
• Locating
  None
• Lubrication
  None
• Outer Diameter Type
  Cylindrical
• Relubricatable
  None
• Rolling Element
  Ball
• Row Type Fill Slot
  2
• Manufacturer Catalog Number
  1207 EKTN9/C3
