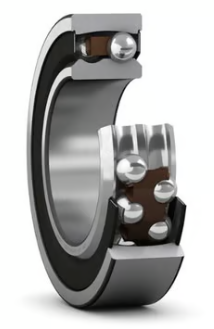

SKF 2201 E-2RS1TN9

Specifications

• Bore Type
  Straight
• Bore Diameter
  12 mm
• Outside Diameter
  32 mm
• Overall Width
  14 mm
• Closure Type
  Double Sealed
• Snap Ring Included
  Without Snap Ring
• Contact Angle
  Not Applicable
• Internal Clearance
  CN
• Operating Temperature Range
  -40 to +210 °F
• Bearing Type
  Self-Aligning Ball Bearings
• Precision Rating
  Not Rated
• Max Rpm
  16000 rpm
• Bearing Material
  Bearing steel
• Cage Material
  Polyamide
• Finish Coating
  Uncoated
• Inner Ring Width
  0.5512 in / 14 mm
• Fillet Radius
  0.6 mm
• Series
  2200
• UPC_NO
  7316570024500
