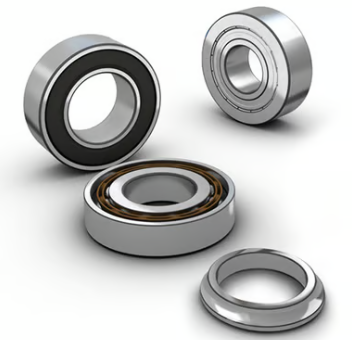

SKF 3206 ATN9 C3

SKF 3206 ATN9 C3

Low stock: 1 left

$171.78 CAD
$171.78 CAD
Sale Sold out
  • Bore Type
    Straight
  • Bore Diameter
    30 mm
  • Outside Diameter
    62 mm
  • Overall Width
    0.9375 in
  • Row Type Fill Slot
    2
  • Closure Type
    Open
  • Snap Ring Included
    Without Snap Ring
  • Bearing Type
    Angular Contact Bearings
  • Duplex Type
    Single
  • Contact Angle
    30 °
  • Bearing Material
    Steel
  • Internal Clearance
    C3
  • Radial Dynamic Load Capacity
    30 kN
  • Radial Static Load Capacity
    20.4 kN
  • Operating Temperature Range
    257 °F
  • Cage Material
    Steel
  • Inner Ring Width
    23.813 mm
  • Element Material
    Bearing steel
  • Max Rpm
    10000 rpm
  • Finish Coating
    Uncoated
  • Fillet Radius
    1 mm
  • Series
    32
