SKF 6205NR

Specifications

• Bore Type
  Straight
• Bore Diameter
  25 mm
• Outside Diameter
  52 mm
• Contact Angle
  Not Applicable
• Overall Width
  15 mm
• Closure Type
  Open
• Snap Ring Included
  With Snap Ring
• Internal Clearance
  CN
• Cage Type
  Sheet metal
• Precision Rating
  ABEC 3
• Seal Type
  Open
• Finish Coating
  Uncoated
• Bearing Material
  Bearing steel
• Cage Material
  Bearing steel
• Inner Ring Width
  15 mm
• Element Material
  Bearing steel
• Fillet Radius
  1 mm
• Max Rpm
  18000 rpm
• Series
  62
• Radial Dynamic Load Capacity
  3327 lbf
• Radial Static Load Capacity
  1754 lbf
• Manufacturer Catalog Number
  6205 NR
• UPC_NO
  7316577096616
• Weight
  0.3 lbs
• Features & Benefits
  • Deep groove ball bearing
• Description
  6205 NR (CN) BRG
• Product Type
  Radial & Deep Groove Ball Bearings
• Long Description

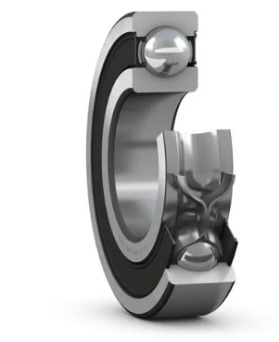

  The 6205 NR Radial/Deep Groove Ball Bearing features 25 mm bore diameter, straight bore, open closure, 52 mm outside diameter, and 15 mm width.
