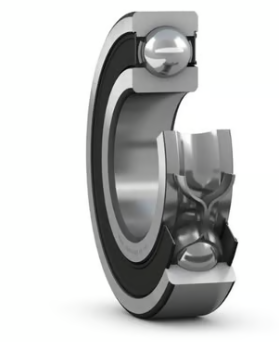

SKF 6307NR

Specifications

• Bore Type
  Straight
• Bore Diameter
  35 mm
• Outside Diameter
  80 mm
• Contact Angle
  Not Applicable
• Overall Width
  21 mm
• Closure Type
  Open
• Snap Ring Included
  With Snap Ring
• Internal Clearance
  CN
• Cage Type
  Sheet metal
• Precision Rating
  ABEC 3
• Seal Type
  Open
• Finish Coating
  Uncoated
• Bearing Material
  Bearing steel
• Cage Material
  Bearing steel
• Inner Ring Width
  21 mm
• Element Material
  Bearing steel
• Fillet Radius
  1.5 mm
• Max Rpm
  12000 rpm
• Series
  63
• Radial Dynamic Load Capacity
  7891 lbf
• Radial Static Load Capacity
  4271 lbf
• Manufacturer Catalog Number
  6307 NR
• UPC_NO
  7316577738875
• Weight
  1.04 lbs
• Features & Benefits
  • Deep groove ball bearing
• Description
  6307 NR (CN) BRG
• Product Type
  Radial & Deep Groove Ball Bearings
• Long Description
  This Radial & Deep Groove Ball Bearing has a 35 mm bore diameter, open closure, 80 mm outside diameter, and 21 mm overall width.
