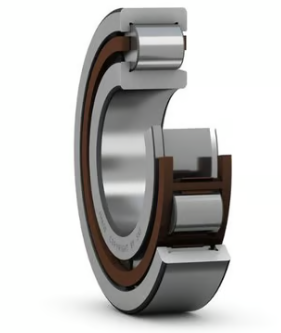

SKF NJ 2305 ECP

Specifications

• Bore Type
  Straight
• ABEC
  ABEC 1
• Number Of Rows
  1
• Bore Diameter
  25 mm
• Outside Diameter
  62 mm
• Overall Width
  24 mm
• Ring Separation
  O/R assembly separable I/R
• Internal Clearance
  C0
• Flanges
  (1) Inner Ring, (2) Outer Ring
• Operating Temperature Range
  Maximum of +300 °F
• Precision Rating
  RBEC 1 (ISO Class Normal)
• Lubrication Type
  Not Lubricated
• Seal Type
  Open
• Max Rpm
  15000 rpm
• Bearing Material
  Steel
• Cage Material
  Polyamide
• Cage Type
  Non-metallic
• Finish Coating
  None
• Closure Type
  Open
• Application
  Piston Type Machines, Rolling Mills, Spindles/Machine Tools
• Fillet Radius
  1 mm
• Series
  23
• Weight
  0.79 lbs
• Manufacturer Upc Number
  7316577113917
