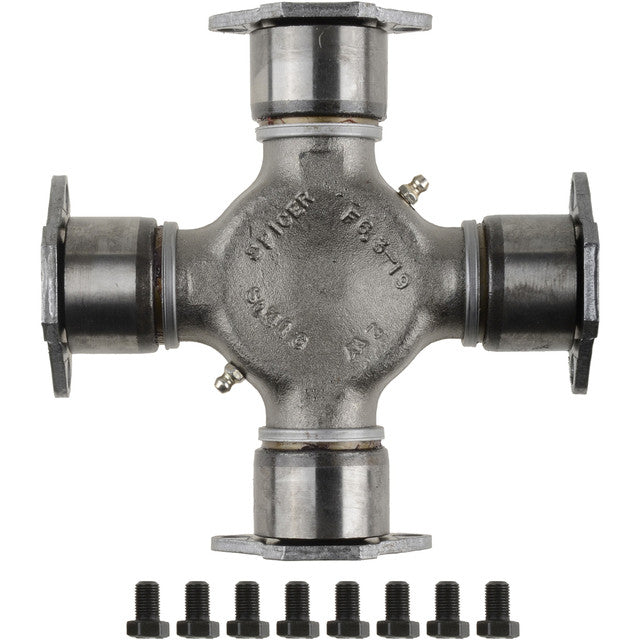

Spicer Universal Joint, 1760 Series, BP Style, Steel, Greaseable, 1.938 in Bearing Cap Diameter 5-407X

When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicles to commercial and off-highway.Universal Joint, BP Style, Plate Bearing Cap, Steel, 1.938 in Bearing Cap Dia, 7 in Bearing Plate Dia, 2.437 in Distance Between Bolts, Greaseable, 1760, 7 in Length

• Greaseable universal joint for extended service life

• BP Style design for reliable performance

• Constructed from durable steel material

• Bearing cap diameter of approximately 1.938 inches

• Fits 1760 series applications

Bearing Cap Diameter	1.938 in
Bearing Cap Diameter (1)	1.9375
Bearing Cap Diameter (2)	1.9375
Bearing Cup Diameter	49
Bearing Plate Diameter	7 in
Between Bolts (in)	2-7/16 in (6.2 cm)
Bracket Holes Distance (MM)	61.9
Cross Length (in.)	6-11/16 in (16.99 cm)
Cross Length (MM)	169.9
Distance Between Bolts	2.437 in
Product Feature #15	When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.
Greasable	Yes
Greasable (Y/N)	Yes
Height	32.9
Key word	U-JOINT
Length	7 in
Material	Steel
Outside Snap Ring U-Joint Cross Trunnion Diameter	32.9
Product Category	Universal Joint
Quantity	1
Series	1760
Type	BP Style
