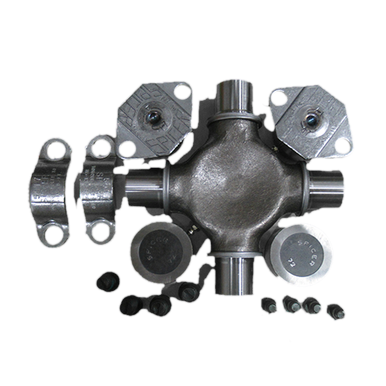

Spicer Universal Joint, 1760 Series, BP Style, Steel, Greaseable, 1.938 in Bearing Cap Diameter #SPI5-407X
Spicer Universal Joint, 1760 Series, BP Style, Steel, Greaseable, 1.938 in Bearing Cap Diameter #SPI5-407X
Out of stock
Regular price
$163.16 CAD
Regular price
Sale price
$163.16 CAD
Quantity
Couldn't load pickup availability
| Bearing Cap Diameter | 1.938 in |
|---|---|
| Bearing Cap Diameter (1) | 1.9375 |
| Bearing Cap Diameter (2) | 1.9375 |
| Bearing Cup Diameter | 49 |
| Bearing Plate Diameter | 7 in |
| Between Bolts (in) | 2-7/16 in (6.2 cm) |
| Bracket Holes Distance (MM) | 61.9 |
| Cross Length (in.) | 6-11/16 in (16.99 cm) |
| Cross Length (MM) | 169.9 |
| Distance Between Bolts | 2.437 in |
| Product Feature #15 | When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway. |
| Greasable | Yes |
| Greasable (Y/N) | Yes |
| Height | 32.9 |
| Key word | U-JOINT |
| Length | 7 in |
| Material | Steel |
| Outside Snap Ring U-Joint Cross Trunnion Diameter | 32.9 |
| Product Category | Universal Joint |
| Quantity | 1 |
| Series | 1760 |
| Type | BP Style |
| VMRS Code | 024002046 |
| Weight | 4.38 lb (1.99 kg) |
| Weight (lbs) | 4.377 |
| Width | 7 in |
| Brands | Spicer |
| Bearing Cap Type | Plate |
| Greaseable | Yes |
