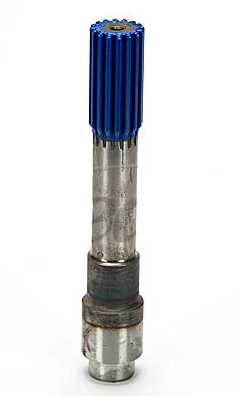

Splined Midship Tube Shalf 2-53-9170-5
Splined Midship Tube Shalf 2-53-9170-5
Low stock: 1 left
Regular price
$257.34 CAD
Regular price
Sale price
$257.34 CAD
Quantity
Couldn't load pickup availability
Splined Midship Tube Shalf 2-53-9170-5
Specifications
| General Design Type | For use with Outboard Slip Yokes | |
| Spline Major Diameter | D | 1.375 |
| Spline Count | 16.000 | |
| Spline Type | ||
| Bearing Diameter | C | 0.000 |
| Tube Diameter and Wall Size | 1.620 X .205 | |
| End of Spline to Bearing Shoulder | Y | 7.469 |
| End of Spline to Point of Weld | K | 9.000 |
| Length of Spline | L | 2.500 |
| Thread Size | ||
| Shoulder Diameter | B | 0.000 |
| Length of Shoulder | G | 0.000 |
