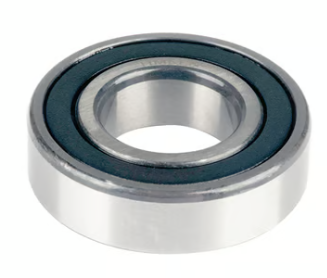

Timken 206PP

Specifications

• Bore Type
  Straight
• Bore Diameter
  30 mm
• Outside Diameter
  62 mm
• Overall Width
  16 mm
• Closure Type
  Double Sealed
• Row Type Fill Slot
  Single Row Non-Fill Slot
• Snap Ring Included
  Without Snap Ring
• Internal Clearance
  P
• Max Operating Temperature
  120° C
• Precision Rating
  Not Rated
• Finish Coating
  Uncoated
• Bearing Material
  Steel
• Cage Material
  Steel
• Inner Ring Width
  0.63 in
• Fillet Radius
  0.039 in
• Series
  200
• Radial Dynamic Load Capacity
  4850 lbf
• Radial Static Load Capacity
  2530 lbf
• Manufacturer Catalog Number
  206PP
• Additional Details
  Open bearing: Prefix designation K or N , Sealed on both sides: Prefix designation PP , Shielded on both sides: Prefix designation KDD , Snap ring groove: Prefix designation G
• Manufacturer Upc Number
  087796174412
