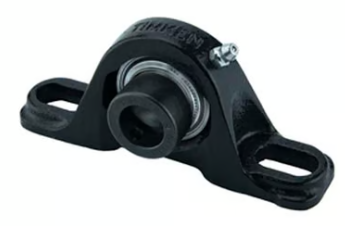

Timken (Fafnir) RSA1 7/16

Pillow Block Ball Bearing Unit - 2-Bolt Base, 1-7/16 in Bore, Cast Iron Material, Standard Duty, Non-Expansion Bearing (Fixed)

Specifications

• Mounting Type
  2-Bolt Base
• Bore Type
  Round
• Bore Diameter
  1-7/16 in
• Bolt Center To Center Length
  6.2500 in
• Base To Bore Centerline
  2.3750 in
• Duty Type
  Standard Duty
• Locking Device
  Eccentric Collar
• Seal Type
  Contact/Lip
• Housing Material
  Cast Iron
• Expansion Type
  Non-Expansion Bearing (Fixed)
• Overall Height
  4.3750 in
• Overall Length
  8.2500 in
• Base Width
  2-5/8 in
• Overall Width
  2.0156 in
• Finish Coating
  Uncoated
• Operating Temperature Range
  Maximum of +250 °F
• Radial Dynamic Load Capacity
  6400 lbf
• Radial Static Load Capacity
  3400 lbf
• Max Rpm
  3930 rpm
• Lubrication Type
  Lubrication Fitting
• Series
  RSA
• Replacement Bearing
  G1107KRRB
• UPC_NO
  087796059283
• Manufacturer Upc Number
  087796059283
• Weight
  7.18 lbs
• Locking Type
  Eccentric Collar
• Number Of Mounting Holes
  2
• Product Type
  Pillow Block Ball Bearing Units
