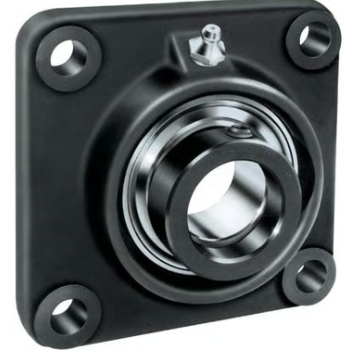

Timken (Fafnir) VCJ1

Flange-Mount Ball Bearing Unit - 1 in Bore, 4-Bolt Flange Mount, Eccentric Collar Locking, Cast Iron Housing Material, Non-Expansion Bearing (Fixed), Intermediate Duty, Contact Seal Seal

• Ideal for applications where minimum machining is to be done
• Assembled with GRA-RRB bearings with positive contact land-riding seals and self-locking collars
• Factory prelubricated with grease fitting for relubrication
• Cast iron housing

• Specifications

  • Product Type
    Flange-Mount Ball Bearing Units
  • Bore Diameter
    1 in
  • Housing Material
    Cast Iron
  • Duty Type
    Intermediate Duty
  • Bolt Center To Center Length
    2.7500 in
  • Bolt Circle Diameter
    3.9060 in
  • Locking Device
    Eccentric Collar
  • Expansion Type
    Non-Expansion Bearing (Fixed)
  • Seal Type
    Contact Seal
  • Overall Length Diameter
    3.7500 in
  • Lubrication Type
    Relubricatable
  • Bore Type
    Straight
  • Radial Dynamic Load Capacity
    3550 lbf
  • Radial Static Load Capacity
    1730 lbf
  • Length Through Bore
    43.1 mm
  • Finish Coating
    Uncoated
  • Max Rpm
    5440 rpm
  • Series
    VCJ
  • Standards Met
    FDA Compliant, USDA Compliant
  • Replacement Bearing
    GRA100RRB
  • Manufacturer Upc Number
    087796057586
  • UPC_NO
    087796057586
  • Weight
    1.97 lbs
  • Type Of Bearing
    Ball
  • Mounting Type
    4-Bolt Flange
