Timken (Fafnir) VCJT1

Timken (Fafnir) VCJT1

Out of stock

$102.89 CAD
$102.89 CAD
Sale Sold out

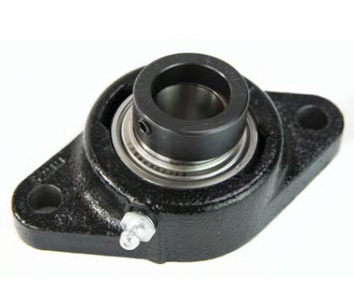

Flange-Mount Ball Bearing Unit - 1 in Bore, 2-Bolt Flange Mount, Eccentric Collar Locking, Cast Iron Housing Material, Non-Expansion Bearing (Fixed), Intermediate Duty, Contact Seal Seal



  • VCJ series are ideal for applications where minimum Machining is too be done
  • Assembled with GRA-RRB bearings with positive contact land-riding seals and self-locking collars
  • Factory prelubricated with grease fitting for relubrication
  • Cast iron housing

Specifications

  • Product Type
    Flange-Mount Ball Bearing Units
  • Bore Diameter
    1 in
  • Housing Material
    Cast Iron
  • Duty Type
    Intermediate Duty
  • Bolt Center To Center Length
    3.9063 in
  • Bolt Circle Diameter
    3.9060 in
  • Locking Device
    Eccentric Collar
  • Expansion Type
    Non-Expansion Bearing (Fixed)
  • Seal Type
    Contact Seal
  • Overall Length Diameter
    4.8750 in
  • Lubrication Type
    Relubricatable
  • Bore Type
    Straight
  • Radial Dynamic Load Capacity
    3550 lbf
  • Radial Static Load Capacity
    1730 lbf
  • Length Through Bore
    1-7/32 in
  • Finish Coating
    Uncoated
  • Max Rpm
    5440 rpm
  • Series
    VCJT
  • Standards Met
    FDA Compliant, USDA Compliant
  • Replacement Bearing
    GRA100RRB
  • Manufacturer Catalog
  • Manufacturer Upc Number
    087796057593
  • UPC_NO
    087796057593
  • Weight
    1.63 lbs
  • Type Of Bearing
    Ball
  • Mounting Type
    2-Bolt Flange
